VICI Jour Newsletter Spring 2021

HIGH-PRESSURE PEEK FITTINGS AND TUBING

2021 has started well, and we would like to update you regarding our high-pressure, one-piece finger-tight fittings, unions, and PEEK tubing.

Biocompatible PEEK finger-tight fittings and unions are ideal for connecting LC system modules in combination with PEEK capillary tubing, and are essential for every chromatographic laboratory.

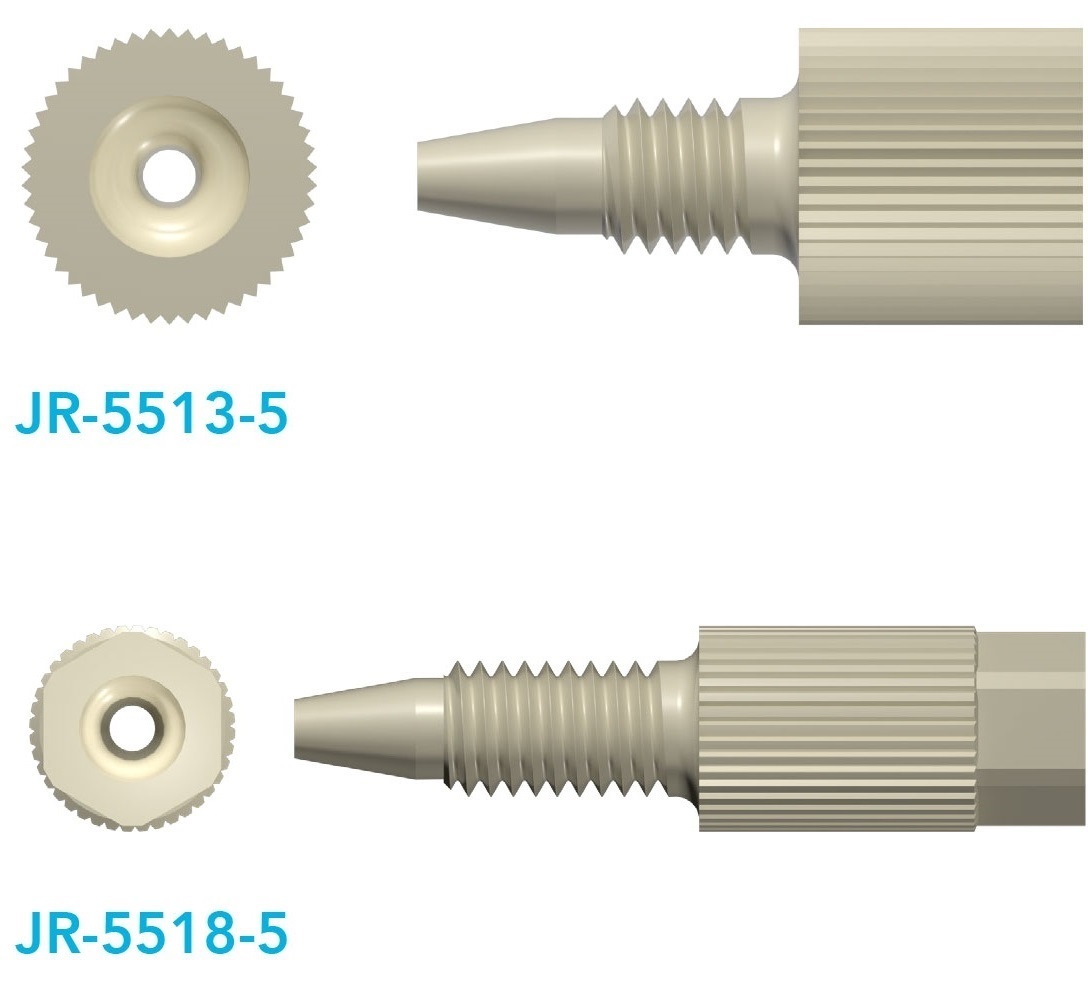

For use on LC equipment with limited space, VICI Jour offers a NEW shorter one-piece finger-tight fitting (JR-5513). It is also available as an extended version with a knurled head for easy hand tightening and a hex-headed part (JR-5518).

The fittings are available in bulk or packages of 5 (JR-5513-5 / JR-5518-5). The fittings are manufactured from PEEK GF (Glass Filled) and have a pressure rating of up to 350bar (5000psi). The fittings are designed to be used with 1/16’’ OD tubing in 10-32 threaded ports.

Please refer to VICI Jour catalog 20Int on page 26 or HERE on the VICI Jour website.

SPECIFICATIONS

  •  Material: PEEK GF30
  • Manufactured by injection molding
  • 10-32 thread
  • Biocompatible
  • Knurled head for easy manual tightening
  • For use with 1/16” OD tubing
  • Pressure rating 350bar (5000psi)
  • Autoclavable at 121°C

COLOR-CODED PEEK FITTINGS

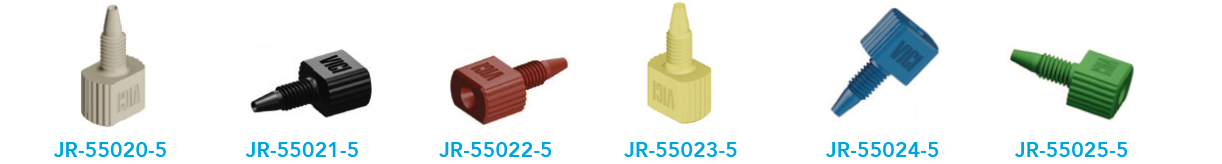

In addition to the new finger-tight fittings, VICI Jour offers the already well-established color-coded PEEK fittings with wrench flats. These enable easy finger-tight assembly or extratightening with a wrench, offering easy identification of tubing lines in multiple colors. The fittings are rated for pressures up to 350 bar (5000 psi). They are available in bulk (PNs JR-5502X-1) and packages of 5 pieces (PNs JR-5502X-5).

You will find these fittings in the VICI Jour catalog 20Int on page 26 as well as HERE on the VICI Jour website

SPECIFICATIONS

  • Material: PEEK GF30
  • Manufactured by injection molding
  • 10-32 thread
  • Biocompatible
  • Flat head for easy manual tightening
  • For use with 1/16” OD tubing
  • Pressure rating 350bar (5000psi)
  • Autoclavable at 121°C

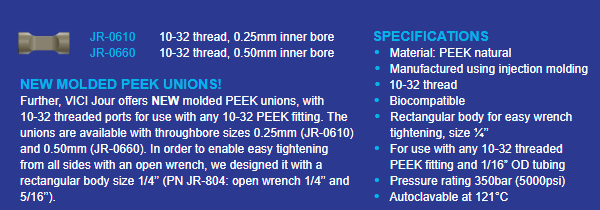

You can find unions and tools on the VICI Jour website. For more information about the open wrench for our PEEK unions, you can also find it on page 103 in the VICI Jour catalog 20Int.

HIGH-PRESSURE PEEK FITTINGS AND TUBING PEEK

Finger-tight fittings and unions are used to connect LC modules using PEEK capillaries. VICI Jour offers PEEK capillaries in multiple sizes. The 1/16” OD is available as striped color-coded tubing. The colored stripes make it easy to distinguish between the different tubing IDs.

Standard 1/16’’ OD, striped PEEK tubing is offered in pack sizes of 1.5m, 3m, 5m, 10m, 15m, 25m, and in bulk lengths from 26 meters long. Mostly used in LC are the striped color-coded PEEK tubing, with 1/16” OD and IDs between 0.13mm and 0.50mm.

The recommended maximum working pressures of PEEK tubing (see below in specifications) are calculated from burst pressures using a safety factor of 2.5. These values apply for RT (room temperature), assuming the tubing is not mechanically stressed (no bending). VICI Jour colored 1/16” OD PEEK tubing can be found in the VICI Jour catalog 20Int on page 10 as well as HERE on the VICI Jour website.

SPECIFICATIONS

  • Material PEEK natural
  • Manufactured by extrusion
  • Biocompatible
  • Autoclavable at 121°C
  • Max. recommended working pressure:
  • up to 345-460 bar (5000-6700 psi),
  • dependent on IDs between 0.50 and
  • 0.13mm. Refer to VICI Jour catalog
  • 20Int on page 108 as well as HERE
  • on the VICI Jour website.
